EFFICIENCY

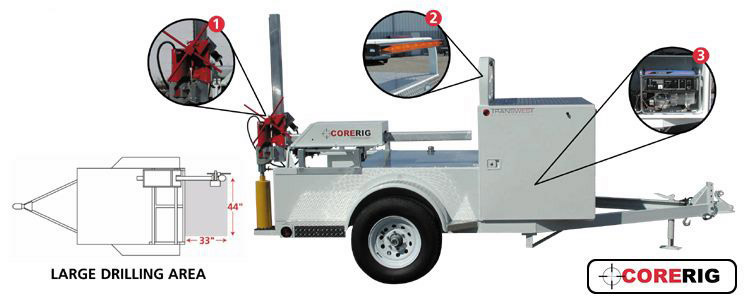

• Completely self-contained power supply, utilizing a 4600-watt generator(3)

• Patented articulating arm provides 10 square feet of coring area allowing for a 44-inch lateral movement and a 33-inch longitudinal movement, which provides faster targeting of coring locations

• Reduced set-up time at each location

GENERAL

• The T-1000 Coring System enables the sampling of Concrete, Asphalt and other pavements

• 14 cubic foot lockable cabinet provides convenient storage with theft protection

• 5 position adjustable 2" ball couple

• 1 year warranty plus full manufacturers' warranties

SAFETY & PERFORMANCE

• 48 inch directional traffic control yellow arrow board for added safety, 66 inches above ground level(2)

• Electric brakes

• Area lighting for night work

• 160-gallon water tank with pressure sensing electric pump

• Water & power controls are located on the drill motor control box

• Reliable Milwaukee coring motor with a two-speed transmission(1)

• Increased down pressure decreases drilling time

ACCESSORIES / OPTIONS

• Custom paint
• Electric start generator
• Water recovery vacuum system
• Full line of core bits
• Core cut-off saw
• Canvas weather proof covers
• Diamond plate
